02-08A - ENGINE - BLOCK HEATER
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    87017686
    CONSTRUCTION DIA; Engine Heater, Incl. 1A - 5
  • 1
    1
    196466A1
    ELECTRIC CABLE 120V, 1829mm L; 1829 mm (72 in), No Longer Available, Order 87105748
  • 1A
    1
    87105748

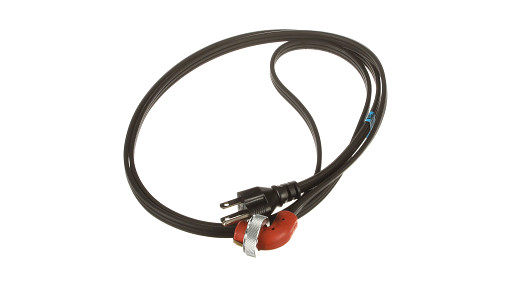

    ELECTRIC CABLE 120V, 15A, 1829 mm L;
  • 2
    1
    8602005
    BLOCK HEATER 750W, 120V; 750W, 120V
  • 3
    1
    L18331
    CABLE TIE 375.9mm L, Nylon, Black; CABLE STRAP
  • 4
    2
    86624184
    WASHER 9mm ID x 16mm OD x 1.6mm Thk, CST, ZND;
  • 5
    2
    120104
    BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd;
