08-08 - HYDRAULIC APRON DRIVE SYSTEM (1560, 1570 AND 1580 SPREADER)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    HYDRAULIC HOSE; 95''/2413 mm long, at tractor remote coupling
  • 2
    1
    CLAMP; retaining, hose, hoses to PTO guard
  • 3
    1
    BOLT Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd;
  • 4
    1
    LOCK WASHER 8mm ID;
  • 5
    1
    NUT M8, Cl 8;
  • 6
    1
    LOCK NUT M8 x 1.25, Cl 8.8;
  • 7
    2
    HYD CONNECTOR 3/4'' - 16 Male JIC x 7/8'' - 14 Male ORB; Adapter, straight, O-ring boss
  • 8
    1
    O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;
  • 9
    1

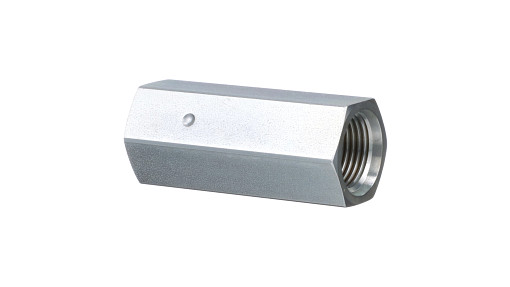

    VALVE; check, return; (SN Break) Between hose and tractor
  • 10
    1
    UNION 3/4''-16, 37 Degree x 3/4''-16, 37 Degree; CONNECTOR straight, 3/4''-16 flare
  • 11
    2

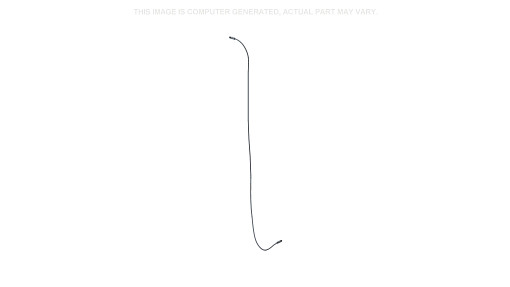

    HYDRAULIC HOSE 12.70 mm ID x 5080.00 mm, SAE 100R1; to Hydraulic Motor, 1560 Spreader;Ref. 11 is service replacement for original equipment hose which has a nonremoveable 90? swivel fitting at motor end. Also order (1) each of Ref. 16 and 18 for each hose replaced.
  • 11
    2
    HOSE; 240''/6096 mm long, to hydraulic motor, 1570 Spreader;Ref. 11 is service replacement for original equipment hose which has a nonremoveable 90? swivel fitting at motor end. Also order (1) each of Ref. 16 and 18 for each hose replaced.
  • 11
    2
    HYDRAULIC HOSE 12.70 mm ID x 6730.00 mm, SAE 100R1; HYDRAULIC HOSE, 12.70 mm ID X 6730.00 mm, 1580 Spreader;Ref. 11 is service replacement for original equipment hose which has a nonremoveable 90? swivel fitting at motor end. Also order (1) each of Ref. 16 and 18 for each hose replaced.
  • 12
    3

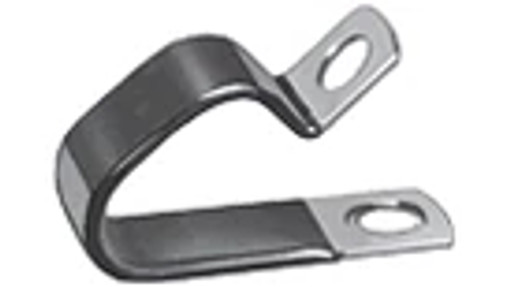

    MOUNTING CLIP 7/8'', Insulated, 1/2'' Bolt; CLAMP plastic coated
  • 13
    3
    BOLT Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd;
  • 14
    3
    LOCK WASHER 8mm ID;
  • 15
    3
    NUT M8, Cl 8;
  • 16
    2
    90 ELBOW 90 Degree Elbow, 7/8'' - 14 Male JIC x 7/8'' - 14 Male ORB; Adj. O-ring boss
  • 17
    1
    O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;
  • 18
    2
    REDUCER 37 Degree, 7/8''-14, Fem x 3/4''-16 Male;
  • 19
    1
    MOTOR HOUSING; ASSEMBLY hydraulic, apron drive, see Figure 08-12
  • 20
    1
    FLANGE; mounting, motor to gear box
  • 21
    4
    BOLT Hex, M10 x 1.5 x 25mm, Cl 8.8;
  • 22
    4
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
  • 23
    1
    COUPLING; to gearbox shaft
  • 24
    1
    KEY 1/4'' Sq x 1'', Par;
  • 25
    1
    STOP; gear box shift control
  • 26
    1
    BOLT Hex, M6 x 1 x 35mm, Cl 8.8;
  • 27
    1
    LOCK WASHER M6;
  • 28
    1
    NUT M6, Cl 8;
  • 29
    1
    REDUCER 37 Degree, 7/8''-14, Fem x 3/4''-16 Male;
  • 30
    1
    FITTING; RESTRICTOR flow, 7/8''-14 flare x 7/8''-14 O-ring boss
  • 31
    1
    O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;
  • 32
    1
    HYD CONNECTOR 3/4'' - 16 Male JIC x 7/8'' - 14 Male ORB; Adapter, straight, O-ring boss
  • 33
    1
    O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;
  • 34
    8
    LOCK WASHER M10;
  • 35
    3
    WASHER 5/16''; (flat, 3/8'' x 7/8'' x 3/32'')
Select All

Ref.

1

Qty

2

Availability

Part #

196584C2

Description

HYDRAULIC HOSE; 95''/2413 mm long, at tractor remote coupling


Select

Alts

Ref.

2

Qty

1

Availability

Part #

451641

Description

CLAMP; retaining, hose, hoses to PTO guard


Select

Alts

Ref.

3

Qty

1

Availability

Part #

614-8025

Description

BOLT Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd;


Select

Alts

Ref.

4

Qty

1

Availability

Part #

892-11008

Description

LOCK WASHER 8mm ID;


Select

Alts

Ref.

5

Qty

1

Availability

Part #

825-1408

Description

NUT M8, Cl 8;


Select

Alts

Ref.

6

Qty

1

Availability

Part #

832-10408

Description

LOCK NUT M8 x 1.25, Cl 8.8;


Select

Alts

Ref.

7

Qty

2

Availability

Part #

218-5060

Description

HYD CONNECTOR 3/4'' - 16 Male JIC x 7/8'' - 14 Male ORB; Adapter, straight, O-ring boss


Select

Alts

Ref.

8

Qty

1

Availability

Part #

237-6010

Description

O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;


Select

Alts

Ref.

9

Qty

1

Availability

Part #

1279338C1

Description

VALVE; check, return; (SN Break) Between hose and tractor


Select

Alts

Ref.

10

Qty

1

Availability

Part #

218-735

Description

UNION 3/4''-16, 37 Degree x 3/4''-16, 37 Degree; CONNECTOR straight, 3/4''-16 flare


Select

Alts

Ref.

11

Qty

2

Availability

Part #

91241C1

Description

HYDRAULIC HOSE 12.70 mm ID x 5080.00 mm, SAE 100R1; to Hydraulic Motor, 1560 Spreader;Ref. 11 is service replacement for original equipment hose which has a nonremoveable 90? swivel fitting at motor end. Also order (1) each of Ref. 16 and 18 for each hose replaced.


Select

Alts

Ref.

11

Qty

2

Availability

Part #

1978106C1

Description

HOSE; 240''/6096 mm long, to hydraulic motor, 1570 Spreader;Ref. 11 is service replacement for original equipment hose which has a nonremoveable 90? swivel fitting at motor end. Also order (1) each of Ref. 16 and 18 for each hose replaced.


Select

Alts

Ref.

11

Qty

2

Availability

Part #

91162C1

Description

HYDRAULIC HOSE 12.70 mm ID x 6730.00 mm, SAE 100R1; HYDRAULIC HOSE, 12.70 mm ID X 6730.00 mm, 1580 Spreader;Ref. 11 is service replacement for original equipment hose which has a nonremoveable 90? swivel fitting at motor end. Also order (1) each of Ref. 16 and 18 for each hose replaced.


Select

Alts

Ref.

12

Qty

3

Availability

Part #

H434289

Description

MOUNTING CLIP 7/8'', Insulated, 1/2'' Bolt; CLAMP plastic coated


Select

Alts

Ref.

13

Qty

3

Availability

Part #

614-8025

Description

BOLT Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd;


Select

Alts

Ref.

14

Qty

3

Availability

Part #

892-11008

Description

LOCK WASHER 8mm ID;


Select

Alts

Ref.

15

Qty

3

Availability

Part #

825-1408

Description

NUT M8, Cl 8;


Select

Alts

Ref.

16

Qty

2

Availability

Part #

218-5107

Description

90 ELBOW 90 Degree Elbow, 7/8'' - 14 Male JIC x 7/8'' - 14 Male ORB; Adj. O-ring boss


Select

Alts

Ref.

17

Qty

1

Availability

Part #

237-6010

Description

O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;


Select

Alts

Ref.

18

Qty

2

Availability

Part #

218-789

Description

REDUCER 37 Degree, 7/8''-14, Fem x 3/4''-16 Male;


Select

Alts

Ref.

19

Qty

1

Availability

Part #

H616185

Description

MOTOR HOUSING; ASSEMBLY hydraulic, apron drive, see Figure 08-12


Select

Alts

Ref.

20

Qty

1

Availability

Part #

110046A1

Description

FLANGE; mounting, motor to gear box


Select

Alts

Ref.

21

Qty

4

Availability

Part #

614-10025

Description

BOLT Hex, M10 x 1.5 x 25mm, Cl 8.8;


Select

Alts

Ref.

22

Qty

4

Availability

Part #

413-616

Description

BOLT Hex, 3/8'' - 16 x 1'', Gr 5;


Select

Alts

Ref.

23

Qty

1

Availability

Part #

110047A1

Description

COUPLING; to gearbox shaft


Select

Alts

Ref.

24

Qty

1

Availability

Part #

Q53

Description

KEY 1/4'' Sq x 1'', Par;


Select

Alts

Ref.

25

Qty

1

Availability

Part #

110048A1

Description

STOP; gear box shift control


Select

Alts

Ref.

26

Qty

1

Availability

Part #

814-6035

Description

BOLT Hex, M6 x 1 x 35mm, Cl 8.8;


Select

Alts

Ref.

27

Qty

1

Availability

Part #

892-11006

Description

LOCK WASHER M6;


Select

Alts

Ref.

28

Qty

1

Availability

Part #

825-1406

Description

NUT M6, Cl 8;


Select

Alts

Ref.

29

Qty

1

Availability

Part #

218-789

Description

REDUCER 37 Degree, 7/8''-14, Fem x 3/4''-16 Male;


Select

Alts

Ref.

30

Qty

1

Availability

Part #

532875R1

Description

FITTING; RESTRICTOR flow, 7/8''-14 flare x 7/8''-14 O-ring boss


Select

Alts

Ref.

31

Qty

1

Availability

Part #

237-6010

Description

O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;


Select

Alts

Ref.

32

Qty

1

Availability

Part #

218-5060

Description

HYD CONNECTOR 3/4'' - 16 Male JIC x 7/8'' - 14 Male ORB; Adapter, straight, O-ring boss


Select

Alts

Ref.

33

Qty

1

Availability

Part #

237-6010

Description

O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;


Select

Alts

Ref.

34

Qty

8

Availability

Part #

892-11010

Description

LOCK WASHER M10;


Select

Alts

Ref.

35

Qty

3

Availability

Part #

495-21038

Description

WASHER 5/16''; (flat, 3/8'' x 7/8'' x 3/32'')


Select

Alts
