384 - TIMING GEAR COVER, 188 DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2679761
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 2
    1
    NSS
    NOT SOLD SEPARAT; COVER - timing gear
  • 3
    1
    G2144
    FITTING; CONNECTION - water outlet
  • 4
    2
    13-616
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5, Full Thd;
  • 5
    2
    92-6
    LOCK WASHER 3/8'';
  • 6
    1
    G46907
    GASKET; (SN Break) Between connection and cover
  • 7
    1
    A57641
    THERMOSTAT;
  • 8
    3
    G11204
    STUD; - injection pump, 3/8'' N.C. x 1-7/16''
  • 9
    1
    221-1022
    PLUG Sq Soc, 1/2''-14 NPTF; - 3/8'' P.T. sckt. hd.
  • 10
    1
    A36609
    OIL SEAL; - oil, crankshaft, 2-3/32'' x 3'' x 1/2''
  • 11
    1
    A58620
    PLUG Cup, 3/4'', Stainless; - water cooler hole (49/64'' cup)
  • 15
    2
    A29442
    RING; - dowel; (SN Break) Between cover and block
  • 16
    1
    413-632
    BOLT Hex, 3/8'' - 16 x 2'', Gr 5;
  • 16
    3
    13-644
    BOLT Hex, 3/8'' - 16 x 2-3/4'', Gr 5; - 3/8'' x 2-3/4'' N.C. hex
  • 16
    1
    13-648
    BOLT Hex, 3/8'' - 16 x 3'', Gr 5; - 3/8'' x 3'' N.C. hex
  • 16
    3
    13-652
    BOLT Hex, 3/8'' - 16 x 3-1/4'', Gr 5; - 3/8'' x 3-1/4'' N.C. hex
  • 17
    2
    13-614
    BOLT Hex, 3/8'' - 16 x 7/8'', Gr 5, Full Thd;
  • 17
    3

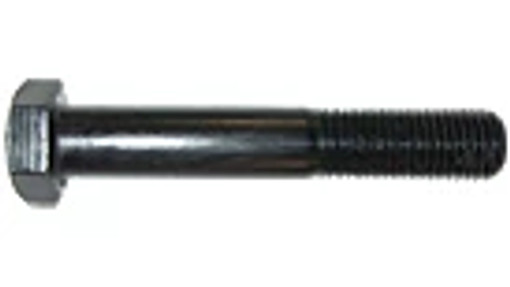

    13-620
    BOLT Hex, 3/8'' - 16 x 1-1/4'', Gr 5, Full Thd;
  • 17
    1
    13-624
    BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5; - 3/8'' x 1-1/2'' N.C. hex
  • 18
    5
    195-25
    WASHER 3/8''; - 13/32'' x 13/16'' x 1/16''
  • 19
    12
    92-6
    LOCK WASHER 3/8'';
  • 20
    2
    193-10
    LOCK WASHER Ext Tooth, 0.391'' ID x 0.682'' OD, STL, PLN; WASHER, LOCK, Ext Tooth, 3/8''
  • 21
    1
    A38228
    GASKET; - cover to block (Replaces G46857)
  • 22
    1
    A38084

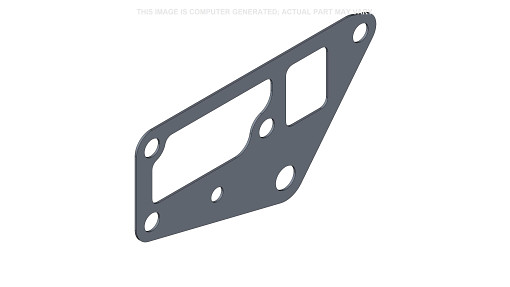

    GASKET 1.27mm Thk; (SN Break) Between cover and head
  • 26
    1
    G46859
    GASKET; - gear cover
  • 27
    1
    G2077
    COVER ASSY; COVER - timing gear housing
  • 28
    8
    13-616
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5, Full Thd;
  • 28
    1
    413-632
    BOLT Hex, 3/8'' - 16 x 2'', Gr 5;
  • 29
    9
    92-6
    LOCK WASHER 3/8'';
