377A - PISTON ASSEMBLY AND CONNECTING RODS, 188 DIESEL, W/ NARROW FLANGED SLEEVES, UP TO SERIAL NO. 2614827
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    A35772
    KIT, LINER, PISTON R; PISTON & SLEEVE ASSEMBLY - (Set of 4)
  • 2
    4
    A36391
    SLEEVE; PISTON & SLEEVE ASSEMBLY - (Set of 1)
  • 3
    1
    G2137
    X; PISTON - cylinder
  • 4
    1
    G4819

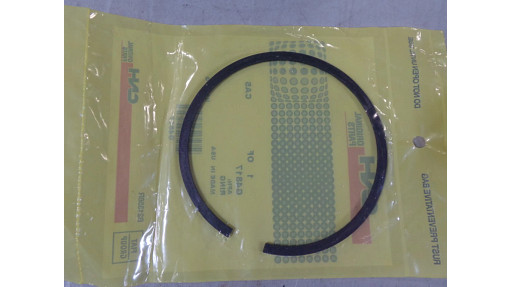

    RING; - compression, 1st groove (See ref. 35)
  • 5
    1
    G4817
    RING; - compression, 2nd groove (See ref. 35)
  • 6
    2
    G47155
    RAIL; - oil control, 3rd groove (See ref. 35)
  • 7
    1
    G47174
    SPRING; SPACER - oil control rails (See ref. 35)
  • 8
    1
    NSS
    NOT SOLD SEPARAT; PIN - piston (Order ref. 36)
  • 9
    2
    G46702
    RING, LOCKING; RING - snap, piston pin ret.
  • 10
    1
    G2110
    SLEEVE; - piston (Cylinder liner) (See note)
  • 11
    2
    G46888
    O-RING 3.737'' ID x 3.943'' OD; ''O''-RING - sleeve packing
  • 12
    1
    G37075
    RING; SET - re-ring (Set of 4)
  • 13
    1
    A35771
    KIT; PIN SET - piston, w/retaining rings (Set of 4)
  • 14
    4
    G11847
    ROD; ASSEMBLY - connecting
  • 15
    1
    NSS
    NOT SOLD SEPARAT; BUSHING - piston pin (Order ref. 41)
  • 16
    2
    G49064
    STEP BOLT; BOLT - conn. rod brg. cap
  • 17
    2
    G49060
    NUT; - conn. rod bolt
  • 18
    1
    G11953
    BUSHING; SET - piston pin (Set of 4)
  • 19
    4
    A36500
    SEAL; INSERT ASSY. - conn. rod brg. (Std.)
  • 19
    4
    A36501
    BEARING LINER; INSERT ASSY. - conn. rod brg. (-.002'')
  • 19
    4
    A36502
    LINING; INSERT ASSY. - conn. rod brg. (-.010'')
  • 19
    4
    A36503
    BEARING LINER; INSERT ASSY. - conn. rod brg. (-.020'')
  • 19
    4
    A36504
    KIT; INSERT ASSY. - conn. rod brg. (-.030'')
