058 - FUEL INJECTION PUMP, 336DT TURBOCHARGED ENGINES, B, E AND H
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 2
    1
    HUB; - pump drive
  • 3
    2
    BUSHING; SPACER - pump timing pointer
  • 4
    1
    LOCK WASHER; - lock, pump drive hub nut
  • 5
    1
    LOCK NUT M14 x 1.5; - pump drive hub
  • 6
    1
    KEY; - pump drive; (SN Break) Between hub and shaft
  • 7
    1
    INDICATOR; POINTER - pump adjustment
  • 8
    1
    O-RING 3mm Thk x 75mm ID; ''O'' RING - seal, control cable
  • 13
    1
    SCREW; - lock, control cable
  • 14
    1
    BOWL; - filter
  • 15
    1
    GASKET; - bowl
  • 16
    1
    CLAMP; BAIL - bowl
  • 17
    1
    NUT; BAIL NUT - retaining
  • 18
    1
    STUD; - retaining, bowl
  • 19
    1
    ELEMENT; ELEMENT - filter, transfer pump
  • 20
    1
    SPRING; - retaining, element
  • 21
    2
    SEAL; - primer & port copper gasket
  • 22
    1
    CARTRIDGE; PRIMER ASSY. - hand, fuel pump
  • 23
    1
    GASKET; - primer pump (rubber)
Select All

Ref.

2

Qty

1

Availability

Part #

A41857

Description

HUB; - pump drive


Select

Alts

Ref.

3

Qty

2

Availability

Part #

A41859

Description

BUSHING; SPACER - pump timing pointer


Select

Alts

Ref.

4

Qty

1

Availability

Part #

A41851

Description

LOCK WASHER; - lock, pump drive hub nut


Select

Alts

Ref.

5

Qty

1

Availability

Part #

A41852

Description

LOCK NUT M14 x 1.5; - pump drive hub


Select

Alts

Ref.

6

Qty

1

Availability

Part #

A41850

Description

KEY; - pump drive; (SN Break) Between hub and shaft


Select

Alts

Ref.

7

Qty

1

Availability

Part #

A41858

Description

INDICATOR; POINTER - pump adjustment


Select

Alts

Ref.

8

Qty

1

Availability

Part #

A41856

Description

O-RING 3mm Thk x 75mm ID; ''O'' RING - seal, control cable


Select

Alts

Ref.

13

Qty

1

Availability

Part #

A44259

Description

SCREW; - lock, control cable


Select

Alts

Ref.

14

Qty

1

Availability

Part #

A43347

Description

BOWL; - filter


Select

Alts

Ref.

15

Qty

1

Availability

Part #

A43346

Description

GASKET; - bowl


Select

Alts

Ref.

16

Qty

1

Availability

Part #

A43350

Description

CLAMP; BAIL - bowl


Select

Alts

Ref.

17

Qty

1

Availability

Part #

A43348

Description

NUT; BAIL NUT - retaining


Select

Alts

Ref.

18

Qty

1

Availability

Part #

A43349

Description

STUD; - retaining, bowl


Select

Alts

Ref.

19

Qty

1

Availability

Part #

A43344

Description

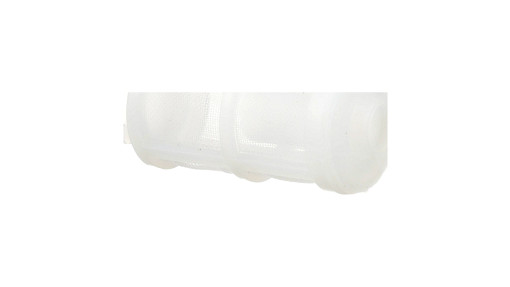

ELEMENT; ELEMENT - filter, transfer pump


Select

Alts

Ref.

20

Qty

1

Availability

Part #

A43345

Description

SPRING; - retaining, element


Select

Alts

Ref.

21

Qty

2

Availability

Part #

A43351

Description

SEAL; - primer & port copper gasket


Select

Alts

Ref.

22

Qty

1

Availability

Part #

A43343

Description

CARTRIDGE; PRIMER ASSY. - hand, fuel pump


Select

Alts

Ref.

23

Qty

1

Availability

Part #

A41761

Description

GASKET; - primer pump (rubber)


Select

Alts
