STEIGER 525 ROWCROP - STE... 05 - SERVICE & MAINTENANC... 05.100.01[240] - INITIAL ...
05.100.01[240] - INITIAL STOCKING LIST (LIST A)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    5802776000
    FILTER; FILTER
  • 2
    1
    86998333
    AIR FILTER Primary, 172.3mm ID x 332.4mm OD x 555.2mm L, Pleatloc; AIR FILTER

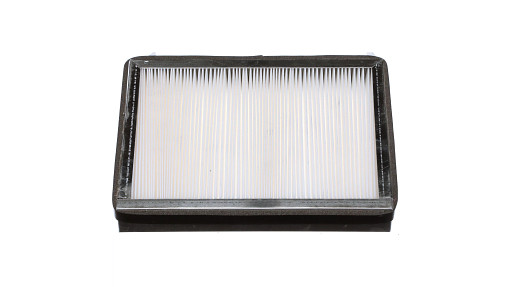

  • 3
    1
    48192026
    ELEMENT; FILTER ELEMENT, F/R BOX

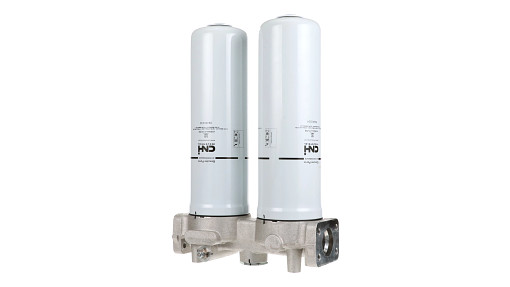

  • 4
    1
    51563900
    HYDRAULIC OIL FILTER; FILTER, HYD OIL, DUAL

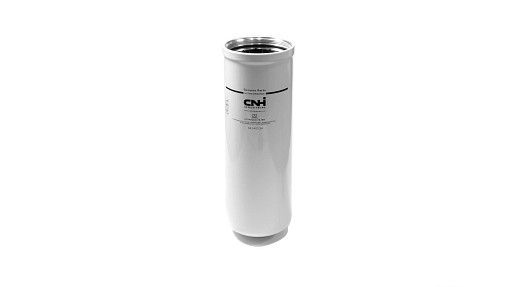

  • 5
    1
    84240234
    HYDRAULIC OIL FILTER Spin-on, 120.1mm OD x 367.9 L, M108 x 2.5; FILTER, HYD OIL, SPIN ON 14.48 IN
  • 6
    1
    90479176
    FUEL FILTER; FILTER, FUEL, SERVICE KIT

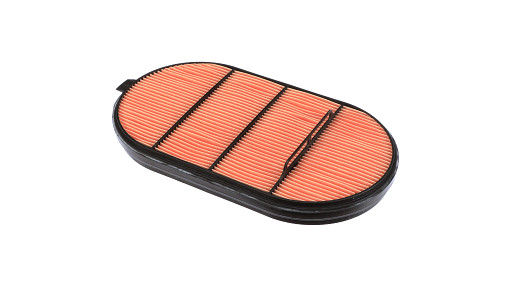

  • 7
    1
    47429531
    AIR FILTER; FILTER, ENGINE AIR ASSY, SECONDARY AIR
  • 8
    1
    47429528
    AIR FILTER; FILTER ASSY, PRIMARY AIR
  • 9
    1
    47833556
    HYDRAULIC OIL FILTER Spin-on, 98.8mm OD x 239.8mm L, M87 x 2.5; HYDRAULIC OIL FILTER
  • 10
    1
    86998332
    AIR FILTER Secondary, 133.1mm ID x 175.1mm OD x 541.7mm L, Pleatloc; AIR FILTER
  • 11
    1
    51447338
    FILTER, DEF; FILTER, DEF
  • 12
    1
    48007134
    AIR FILTER 219.2mm ID x 392mm OD x 623.7mm L; AIR FILTER

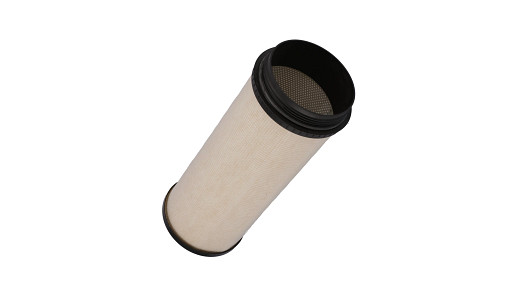

  • 13
    1
    47888462
    AIR FILTER 214mm OD x 539mm L; AIR FILTER
  • 14
    1
    47680524
    FILTER, DEF 100 Micron; FILTER, DEF
  • 15
    1
    259288A1
    CAB FILTER; CAB FILTER

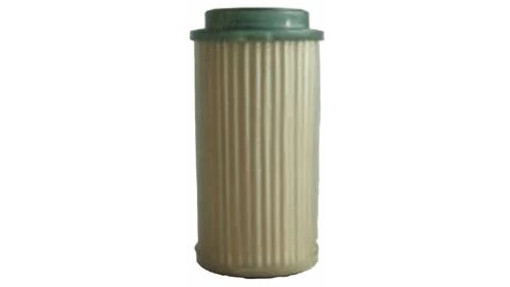

  • 16
    1
    196955A1
    HYDRAULIC OIL FILTER; HYDRAULIC OIL FILTER
  • 17
    1
    87356547
    AIR FILTER; AIR FILTER

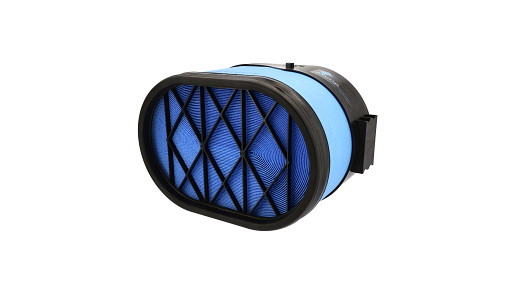

  • 18
    1
    87356545
    AIR FILTER ENGINE, PRIMARY; AIR FILTER

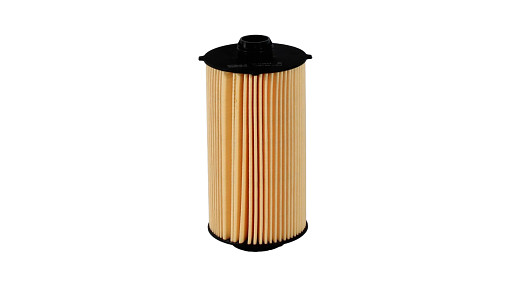

  • 19
    1
    91724827
    ENGINE OIL FILTER; FILTER, ENGINE OIL KIT, CARTRIDGE
