04-006 - STARTER AND ALTERNATOR MOUNTING
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    A187728
    STARTER MOTOR; ASSEMBLY engine, see Figure 04-010 and 04-012, Mounting
  • 2
    3
    814-12050

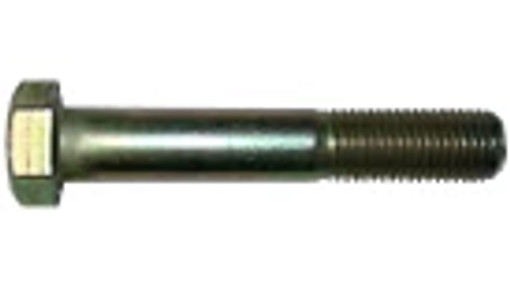

    BOLT Hex, M12 x 1.75 x 50mm, Cl 8.8; Starter Mounting
  • 3
    3
    892-11012

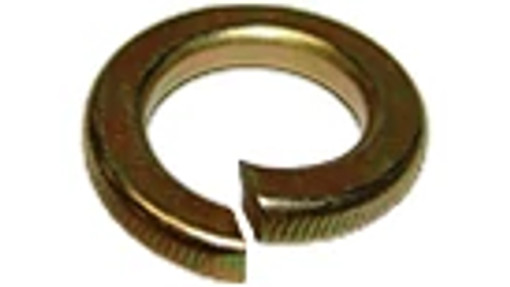

    LOCK WASHER M12; Starter Mounting
  • 4
    1
    493-21052
    LOCK WASHER Int Tooth, 1/2''; internal tooth lock, 1/2'', Starter Mounting
  • 5
    1
    425-148

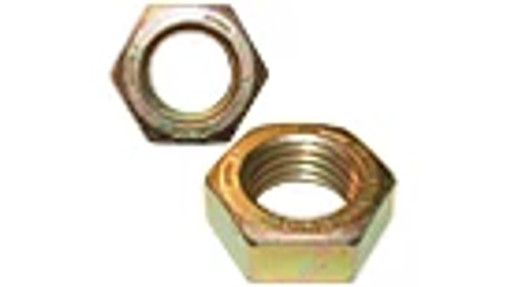

    JAM NUT Jam, 1/2''-13, G5; Starter Mounting
  • 6
    1
    193-1000
    NUT Keps, w/LW,#10-32; hex, with external tooth lock washer, No. 10 NF, Starter Mounting
  • 7
    1
    A187873

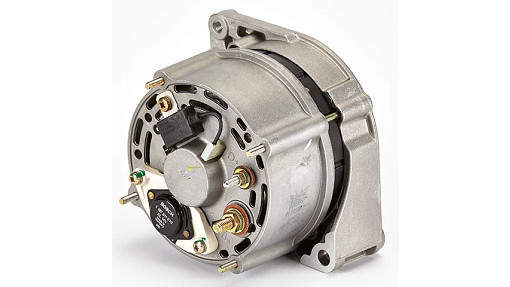

    ALTERNATOR 12V, 65A; ASSEMBLY engine, 65 ampere, see Figure 04-008
  • 8
    1
    J908560
    PULLEY; drive, Alternator
  • 9
    1
    814-10100
    BOLT Hex, M10 x 1.5 x 100mm, Cl 8.8; Alternator
  • 10
    1
    892-11010
    LOCK WASHER M10; Alternator
  • 11
    1
    J910715
    SPACER; alternator mounting
  • 12
    1
    J900227
    BOLT Hex, M8 x 1.25 x 22mm, Cl 10.9; Alternator to brace
  • 13
    1
    A140282
    WASHER 9.78mm ID x 19.66mm OD x 0.81mm Thk; flat, special, 3/8'', brace bolt, Alternator
  • 14
    1
    J907673
    SUPPORT; BRACE lower, alternator mounting
  • 15
    1
    614-8030
    BOLT Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd; Alternator
  • 16
    1
    A187990
    TERMINAL CONNECTOR Tin, 0.254 - 1.520mm; Alternator Male
  • 17
    1
    892-11005
    LOCK WASHER M5; Alternator
  • 18
    1
    825-1405
    NUT M5, Cl 8; Alternator
