Select All
Ref.
Qty
Part #
Alts
Description
-
6PISTON; ASSEMBLY - includes cylinder sleeve, used with engine serial number 71778 and after, Includes: Ref. 1 - 7
-
11NOT SOLD SEPARAT; PISTON - order assembly
-
21PIN 28.57mm OD x 17.48mm L; - piston
-
32SNAP RING 1.125'', Int, #112; Ring, Snap, , Piston pin (Replaces ring 338835R1) 1.125'', Int, #112
-
41SLEEVE; - cylinder, standard, used with piston assembly 612008C91 above
-
1RING; KIT - piston ring, no longer available, order kit 680035C91
-
1RING, SET; KIT - piston ring
-
51NOT SOLD SEPARAT; RING - compression, top or first groove, order kit 674727C91 or 680035C91
-
61NOT SOLD SEPARAT; RING - compression, second groove, order kit 674727C91 or 680035C91
-
71NOT SOLD SEPARAT; RING - oil regulating, piston, order kit 674727C91 or 680035C91
-
86SLEEVE; - cylinder, 0.002 oversize, engine serial number 71778 and after
-
86SLEEVE; - cylinder, 0.010 oversize, engine serial number 71778 and after
-
96BEARING ASSY 60.84mm ID x 64.01mm OD x 25.48mm W; BEARING - connecting rod, standard, two halves
-
96BEARING ASSY; BEARING - connecting rod, 0.002 undersize, two halves
-
96BEARING ASSY; - connecting rod, 0.010 undersize, two halves
-
96CONN. ROD SHELL; BEARING - connecting rod, 0.020 undersize, two halves
-
96BEARING ASSY; - connecting rod, 0.030 undersize, two halves
-
106REMAN-CONNECTING ROD; ROD ASSEMBLY - connecting, remanufactured (North America only), component parts do not apply to the remanufactured assembly
-
6CORE-ROD CONNECTING; RETURN NUMBER - use this part number to return rods for credit when using a remanufactured assembly
-
106ROD, CONNECTING; ROD ASSEMBLY - connecting, new, Includes: Ref. 11, 12
-
111BUSHING 28.28mm ID x 31.89mm OD x 33.33mm L; - piston pin
-
122BOLT 3/8'' - 24 x 2''; - connecting rod
Select All
Ref.
Qty
6Availability
Part #
612008C91Description
PISTON; ASSEMBLY - includes cylinder sleeve, used with engine serial number 71778 and after, Includes: Ref. 1 - 7Img
Select
Alts
Ref.
1Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; PISTON - order assemblyImg
Select
Alts
Ref.
2Qty
1Availability
Part #
332436R1Description
PIN 28.57mm OD x 17.48mm L; - pistonImg
Select
Alts
Ref.
3Qty
2Availability
Part #
100-21112Description

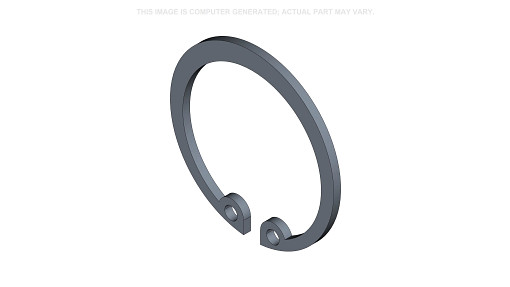

SNAP RING 1.125'', Int, #112; Ring, Snap, , Piston pin (Replaces ring 338835R1) 1.125'', Int, #112Img
Select
Alts
Ref.
4Qty
1Availability
Part #
609028C1Description
SLEEVE; - cylinder, standard, used with piston assembly 612008C91 aboveImg
Select
Alts
Ref.
Qty
1Availability
Part #
674727C91Description
RING; KIT - piston ring, no longer available, order kit 680035C91Img
Select
Alts
Ref.
5Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; RING - compression, top or first groove, order kit 674727C91 or 680035C91Img
Select
Alts
Ref.
6Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; RING - compression, second groove, order kit 674727C91 or 680035C91Img
Select
Alts
Ref.
7Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; RING - oil regulating, piston, order kit 674727C91 or 680035C91Img
Select
Alts
Ref.
8Qty
6Availability
Part #
612000C1Description
SLEEVE; - cylinder, 0.002 oversize, engine serial number 71778 and afterImg
Select
Alts
Ref.
8Qty
6Availability
Part #
612001C1Description
SLEEVE; - cylinder, 0.010 oversize, engine serial number 71778 and afterImg
Select
Alts
Ref.
9Qty
6Availability
Part #
367408R11Description
BEARING ASSY 60.84mm ID x 64.01mm OD x 25.48mm W; BEARING - connecting rod, standard, two halvesImg
Select
Alts
Ref.
9Qty
6Availability
Part #
367632R11Description
BEARING ASSY; BEARING - connecting rod, 0.002 undersize, two halvesImg
Select
Alts
Ref.
9Qty
6Availability
Part #
376666R11Description
BEARING ASSY; - connecting rod, 0.010 undersize, two halvesImg
Select
Alts
Ref.
9Qty
6Availability
Part #
376668R11Description
CONN. ROD SHELL; BEARING - connecting rod, 0.020 undersize, two halvesImg
Select
Alts
Ref.
9Qty
6Availability
Part #
367631R11Description
BEARING ASSY; - connecting rod, 0.030 undersize, two halvesImg
Select
Alts
Ref.
10Qty
6Availability
Part #
735237C91Description
REMAN-CONNECTING ROD; ROD ASSEMBLY - connecting, remanufactured (North America only), component parts do not apply to the remanufactured assemblyImg
Select
Alts
Ref.
Qty
6Availability
Part #
1928147C1Description
CORE-ROD CONNECTING; RETURN NUMBER - use this part number to return rods for credit when using a remanufactured assemblyImg
Select
Alts
Ref.
10Qty
6Availability
Part #
306280R12Description
ROD, CONNECTING; ROD ASSEMBLY - connecting, new, Includes: Ref. 11, 12Img
Select
Alts
Ref.
11Qty
1Availability
Part #
306708R1Description
BUSHING 28.28mm ID x 31.89mm OD x 33.33mm L; - piston pinImg
Select
Alts
Ref.
12Qty
2Availability
Part #

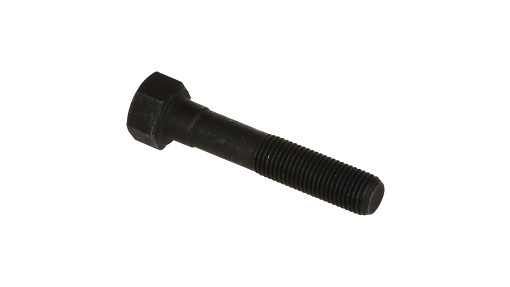

316366R1Description
BOLT 3/8'' - 24 x 2''; - connecting rodImg
